AC-DC Converter

February 2026

Circuit DesignPower ElectronicsOscilloscope

About This Project

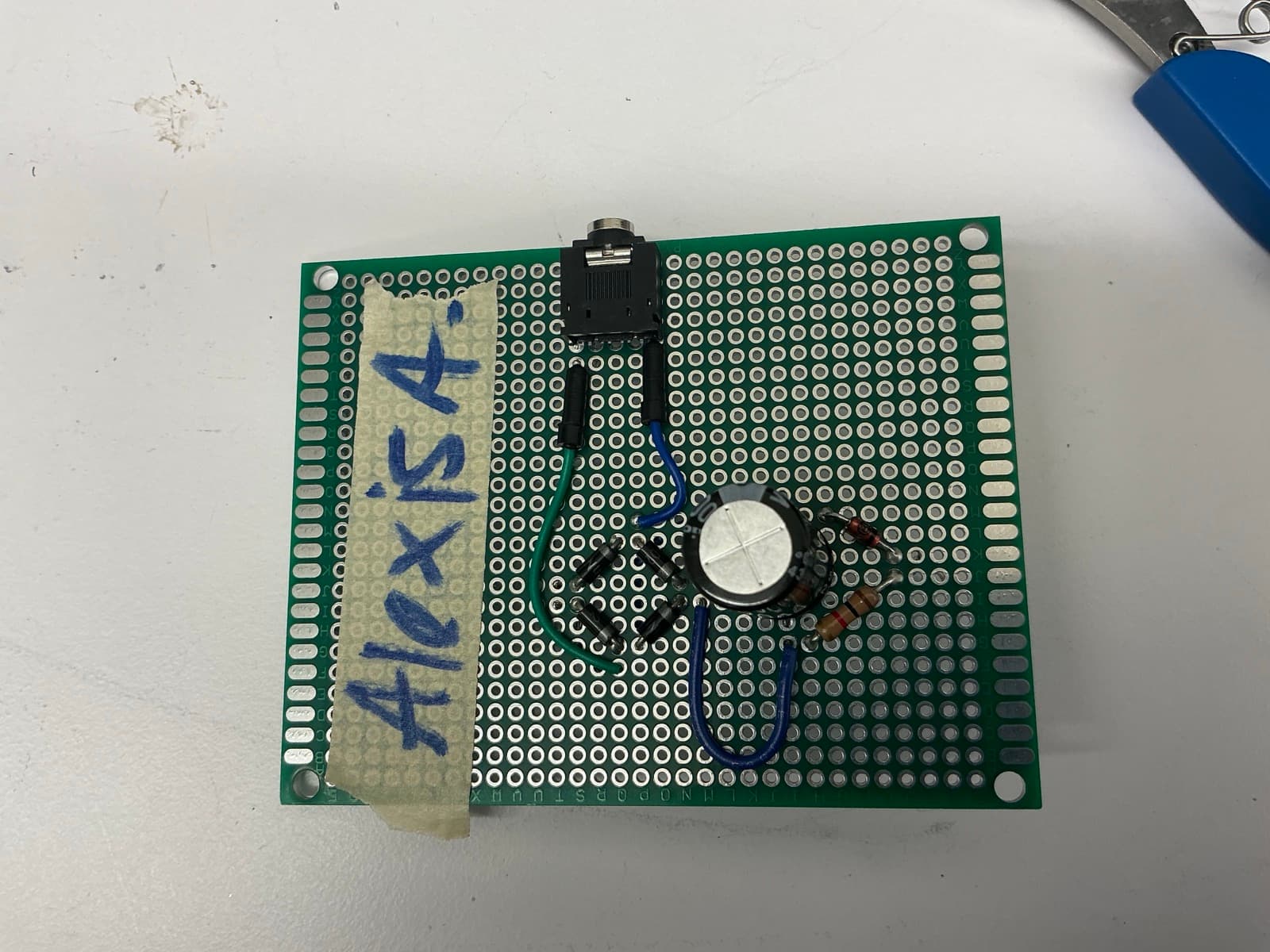

For this project I built a circuit that converts AC power into DC. The interesting part was hooking it up to an oscilloscope so I could actually see what was happening to the signal instead of just measuring a number at the end. Watching the sine wave on the oscilloscope screen change as it went through the circuit, and seeing it flatten out into a steady DC line, made the whole concept click in a way it never did just reading about it. It was a simple project, but seeing the waveform actually change with my own eyes was probably the coolest part of it.

Technical Challenges

Getting a clean, stable DC output instead of a bumpy one, and figuring out how to actually read and interpret what the oscilloscope was showing me.

What I Learned

Finally understood what AC-to-DC conversion actually looks like in real time instead of just on paper, and got a lot more comfortable using an oscilloscope.

Project Goal

Built an AC-DC power converter and used an oscilloscope to watch the signal actually change from AC to DC.

Engineering Focus

Focused on power electronics circuit design and reading oscilloscope waveforms.

Skills Used

Circuit Design, Power Electronics, Oscilloscope
